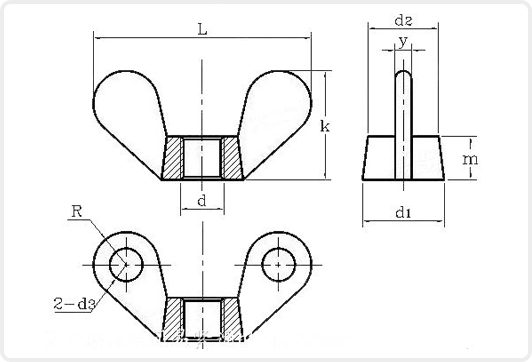

DIN 315 Wing Nuts
Dimension
M4
M5
M6
M8
M10
M12
M16
M20
M24
Pitch
0.7
0.8
1
1.25
1.5
1.75
2
2.5
3
D1 MAX
8
11
13
16
20
23
29
35
44
MIN
6
8
10
13
17
20
26
32
41
D2 MAX
7
9
11
12.5
16.5
19.5
23
29
37.5
MIN
5.5
7.5
9
10.5
14.5
17.5
21
27
35
L MAX
20
26
33
39
51
65
73
90
110
MIN
18
24
30
36
48
62
70
86
106
Y MAX
1.9
2.3
2.3
2.8
4.4
4.9
6.4
6.9
9.4
MIN
1.1
1.5
1.5
2
3.6
4.1
5.6
6.1
8.6
K MAX
10.5
13
17
20
25
33.5
37.5
46.5
56.5
MIN
8.5
11
15
18
23
31
35
44
53.5
M MAX
4.6
6.5
8
10
12
14
17
21
25
MIN
3.2
4
5
6.5
8
10
13
16
20
